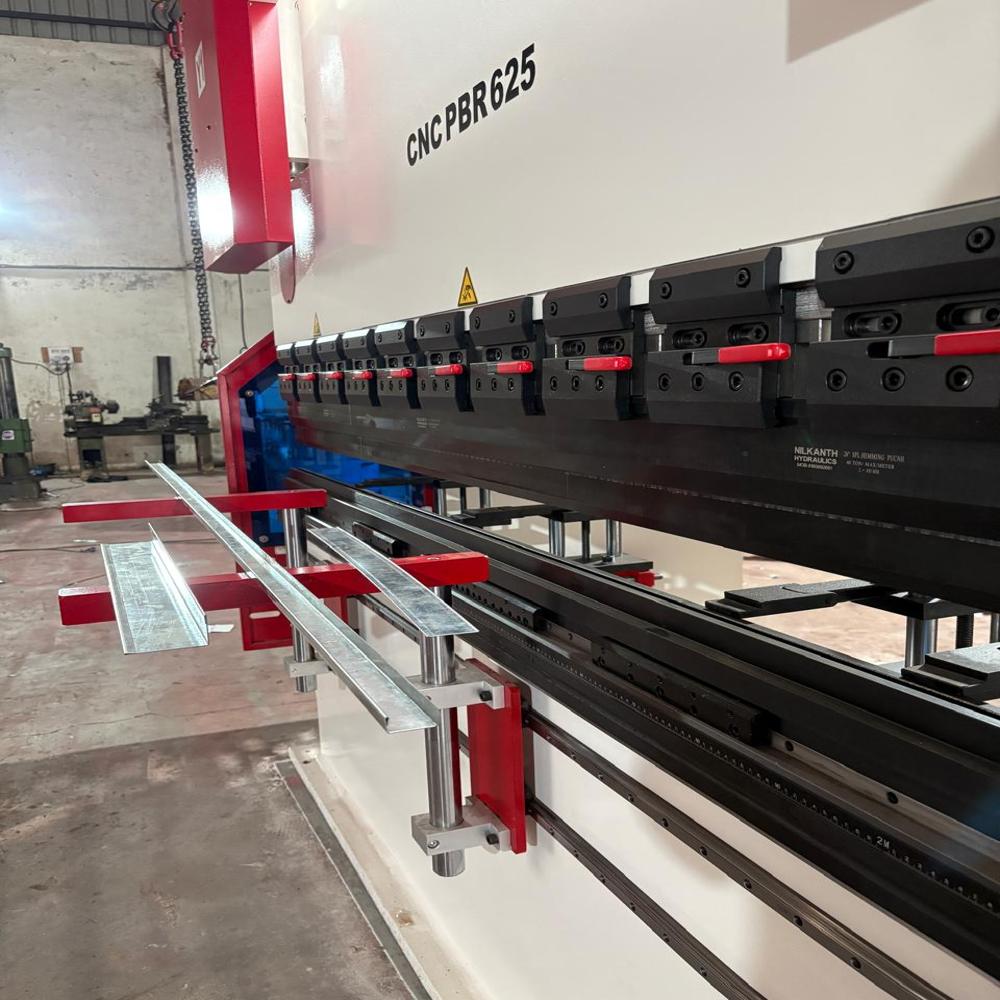

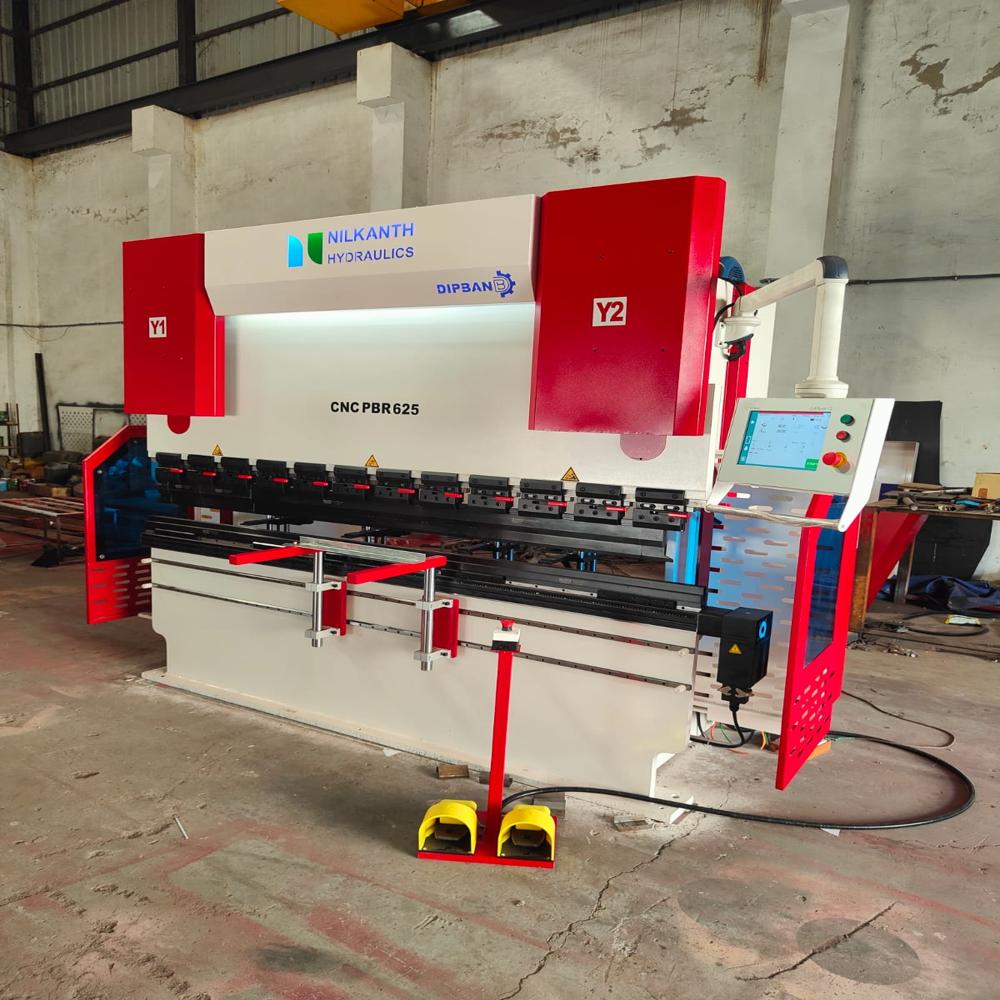

Hydraulic CNC Press BRake machine

Name: Hydraulic CNC Press BRake machine
Brand: Nilkanth Hydraulics
Price: 1870000.0 INR
Availability: InStock

Price 1870000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Hydraulic CNC Press BRake machine Specification

Product Type
Hydraulic CNC Press Brake Machine

General Use
Sheet metal bending, fabrication, industrial applications

Material
MS, SS, Aluminium, GI

Type
Press Brake

Capacity
Varies by model (e.g. 60 ton, 80 ton, etc.)

Weight (kg)
Approx. 4200 kg (Depends on configuration)

Computerized
Yes (CNC)

Automatic
Yes

PLC Control
Yes, integrated PLC-based CNC system

Bar Feeder
No

Power Source
Hydraulic & Electric

Power Consumption
7.5 kW (Varies by model)

Rigidity
Heavy-duty frame construction

Voltage
415 V / 50 Hz 3-Phase

Motor
Siemens/ABB induction motor

Table Size
Custom options, e.g. 2500 mm

Spindle Speed
N/A (Not applicable for press brake)

Axial Choice
Y1, Y2 (Dual axis control)

Dimension (L*W*H)
Approx. 3300 x 1800 x 2100 mm

Feature
CNC Controller, programmable, safety light curtains, foot pedal operation

Color
Red & White

Display Type
HMI touch panel with color display

Stroke Length
150 mm - 250 mm (model dependent)

Optional Accessories
Crowning system, extended back gauge, additional tool sets

Hydraulic System Brand
Yuken/Parker/Bosch Rexroth (as per configuration)

Back Gauge Range
Up to 600 mm, programmable

Max. Bending Length
Up to 2500 mm per pass

Ram Speed
Approach: 100 mm/s, Return: 120 mm/s

Bending Angle Accuracy
0.5

Control System
Touch screen CNC controller with multiple program memory

Throat Depth
200 mm - 400 mm

Frame Type
Mono-block welded construction

Standard Accessories
Standard punch and die set, foot switch, user manual

Repeatability
0.01 mm on Y-axis

Environmental Condition
Indoor, dust-free, ambient temp. 5-40C

Working Pressure
220 bar maximum

Safety Features
Foot pedal, light curtain, emergency stop, overload protection

Oil Tank Capacity
120 Litres

Hydraulic CNC Press BRake machine About

Experience the acclaimed Hydraulic CNC Press Brake-engineered for breathtaking precision and unmatched reliability. Its glorious mono-block welded frame, powered by cost-effective Siemens/ABB motors and a polished HMI touch screen, creates seamless operations. With a versatile, programmable back gauge and scarce industry-standard bending accuracy of 0.5, each pass achieves immaculate results on sheet metal, aluminum, and stainless steel up to 2500 mm. Enhanced by safety light curtains and robust overload protection, this machine exemplifies industrial brilliance for high-demand fabrication environments.

Versatile Performance and Competitive Edge

The Hydraulic CNC Press Brake stands out in sheet metal fabrication, appliance manufacturing, and automotive components. Its dual-axis Y1, Y2 CNC controls, extraordinary bending repeatability of 0.01 mm, and programmable settings deliver continuous cost-effective operations. Embracing a wide range of application media-including MS, SS, and aluminum-this machine is acclaimed for its scarce blend of finesse and ruggedness, redefining competitive advantages in today's market.

Efficient Distribution and Seamless Exchange

Delivered nationwide, the Hydraulic CNC Press Brake machine caters to major domestic hubs with reliable handover and tightly monitored supply processes. Each shipment is meticulously packaged with standard punch and die sets, ensuring a smooth exchange and damage-free arrival. The company's robust supply ability guarantees rapid delivery to manufacturers, suppliers, and exporters, establishing trust and performance excellence across all industrial applications.

FAQ's of Hydraulic CNC Press BRake machine:

Q: How does the touch screen CNC controller enhance the Hydraulic CNC Press Brake's operation?

A: The HMI touch screen CNC controller offers a polished interface with multiple program memory, simplifying setup and operation while ensuring accurate and repeatable bends.

Q: What safety features are integrated into this press brake?

A: This Hydraulic CNC Press Brake includes a foot pedal operation, light curtain, emergency stop, and overload protection for optimal operator safety during fabrication.

Q: Where is this machine ideally used?

A: Ideally used in industrial environments such as sheet metal workshops, heavy fabrication plants, and appliance manufacturing units, it excels in both medium and large-scale production.

Q: What materials can be processed with this press brake?

A: It effectively processes MS, SS, aluminum, and GI materials, delivering precise bends on a wide variety of sheet metals for diverse applications.

Q: How is the handover process managed during delivery?

A: Upon delivery, the machine is handed over with all standard accessories securely packaged, ensuring customers receive a ready-for-use system with user manuals and essential toolsets.
